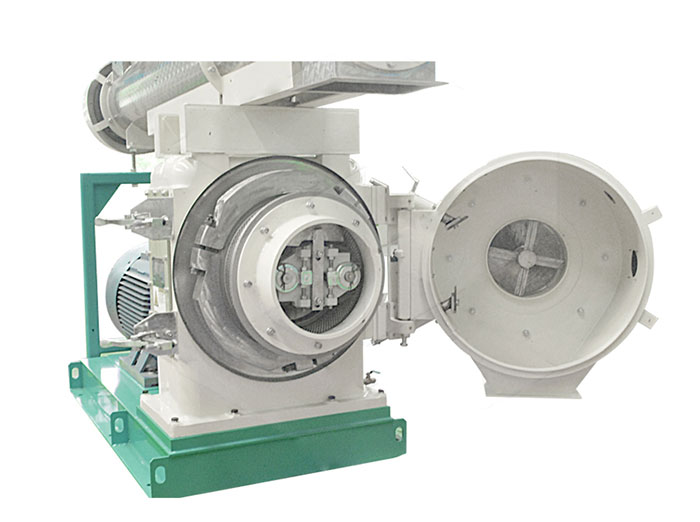

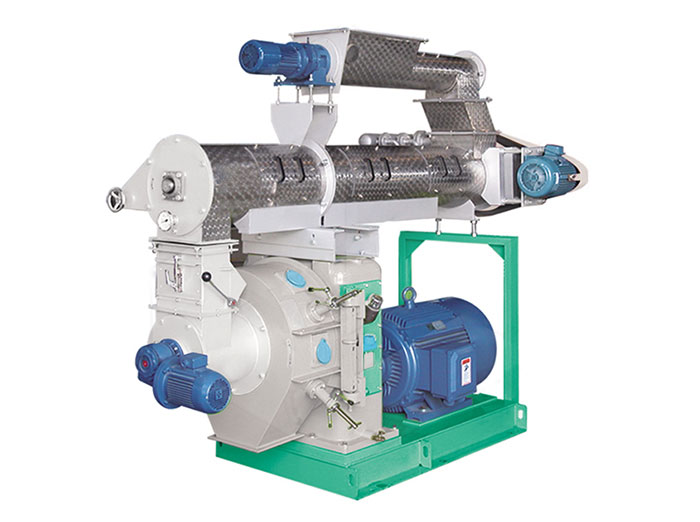

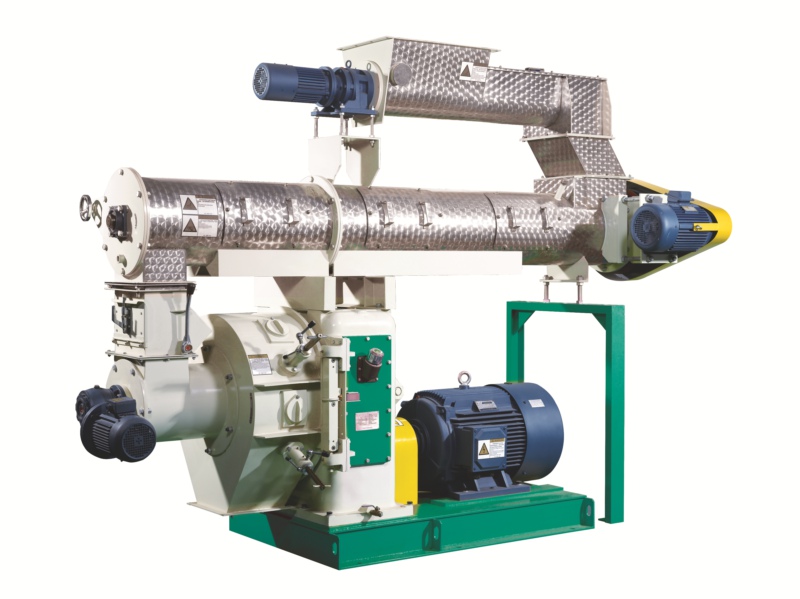

SZLHm Biomass Pellet Mill
    • SZLHm Biomass Pellet Mill
    • SZLHm Biomass Pellet Mill
    • SZLHm Biomass Pellet Mill
product details

Biomass Pellet Mill

The biomass pellet mill is a kind of biomass energy pretreatment equipment. The biomass pellet mill adopts the principle of interaction between the extrusion pressure and the friction between the circular mold and the press wheel so that the material can be formed.


Biomass Pellet Mill Applications

Biomass pellet mill mainly for agricultural and forestry processing waste such as wood chips, straw, rice husk, bark, and other biomass as raw materials, through pretreatment and processing, the solidified into high-density pellet fuel.    It is used for granulation of wood, straw, grass, marigold, palm leaf, and other light materials


Biomass Pellet Mill Features

1. Regulate the feeding rate with Frequency variable motor; Feeding screw, with variable pitch structure, leads to feeding uniformity and accurate control

2. With high precision gear transmission and quick-discharge type ring die, the capacity is about 15% higher than the belt transmission

3. Adopt the international advanced equipment and processing technology to produce the alloy steel ring die which results in long service life, smooth pelletizing, and high quality.


Model

Main Power(KW)

Capacity t/h

SZLHm420

90

1-1.5

SZLHm508

110/132

1.5-2

SZLHm558

160

2-2.5

SZLHm678

180/200

2.5-3

SZLHm768

250/280

3.5-4
